Telephone exchange

A telephone exchange, telephone switch, or central office is the telecommunications system in the PSTN or in big business. It interconnects digital system telephone subscriber lines or virtual circuits to make telephone calls between subscribers.

Telecommunication words have been employed over time with varied meanings, from a historical point of view. The word telephone exchange typically means the central office, a Bell System term. The term Bell System. A central office is sometimes referred to as a facility for the interior plant equipment of a number of telephone interchanges, each servicing a particular geographical region. This region is also called the exchange or exchange area. A central office location in North America can also be designated as a central wire center that designates a facility that is linked to a telephone and gets a dial tone. Telecommunications providers designate rate centers for business and billing purposes.

A standard national numbering scheme for identifying central offices with a three-digit central office code and a 3-digit area code for a numbering plan has been created for the Bell System in the United States and Canada in the 1940s (NPA code, or area code). In each section of the numbering strategy, central office codes were distinct. As prefix in subscriber phone numbers, the code of the NPA and the central office code have been utilized. In the mid-20th century, comparable attempts of the methodical structuring of networks took place in many nations with the growth of international and transoceanic telephone lines, particularly through direct client calls.

For corporate or company usage, when it has links to a public switched telephone network, a private telephone exchange is commonly referred to as a Private Branch Exchange (PBX). A PBX can be built-in business premises, usually in the vicinity of big offices or on an organizational campus for the use of telephones and other private circuit boards. A PBX or a key telephone system might be installed in the office of a receiver in smaller installations.

History

During the E-Telegraph period, its main customers were posts, railway station offices, major government offices (ministries), stock exchanges, relatively few publications disseminated nationwide, the largest companies, and rich persons of worldwide importance. Although telephone systems were existing in the same scheme and structure in which the telephone was built prior to the creation of the telephone exchange, success and economic operating would be impossible, since early telephones were hardwired and only communicated by one other telephone (for example, from an individual) before the creation of the telephone exchange table.

A telephone exchange is a telephone system for a limited region, where subscriber lines for calls made between them are switched (interconnected). The phone exchanges superseded smaller telephone networks which connected their customers to each subscriber station with direct links. Exchanges made the telephone available and pleasant for daily usage, giving the push to the establishment of new industries.

The honor of “first telephone exchange” has numerous claims, as with the invention of the telephone itself. Hungarian Tivadar Puskás was one of the first people who proposed a telephone exchange in 1877 during his work with Thomas Edison. The first experimental telephone exchange was established in 1877 in Boston based on Puskás’ theories. In Friedrichsberg near Berlin, Heinrich von Stephan launched the first state-run telephone exchange on November 12, 1877. The first commercial American telephone exchange was developed and built by George W. Coy in New Haven, Connecticut in January 1878. Built with “carriage bolts, handles, and bush wire,” the switchboard can handle two tasks simultaneously. The establishment of an exchange with 50 subscribers at Lowell, MA in 1878 is also ascribed to Charles Glidden.

Other early telephone exchanges in Europe were held in London and Manchester, which were established in 1879 under Bell patents. The first international exchange of bells was held in Belgium (in Antwerp) one year later.

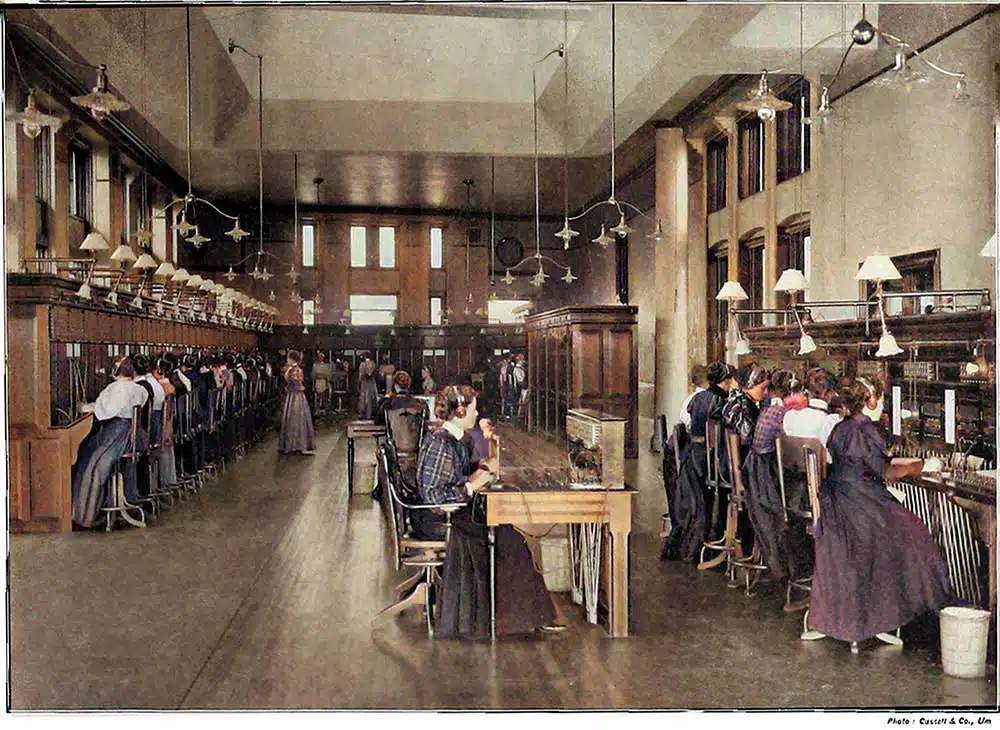

Subsequent interchanges consist of 1 to 100 switchboard operators plug-in boards. Each carrier sat in front of a vertical panel of 1⁄4-inch (3-conductor) jackets holding banks of telephone lines, each locally terminated. A horizontal panel with two rows of patch cords, connected to a cord circuit, was placed in front of the jack panel.

The local loop power lighted a signal bulb near the jack when a calling party lifted the recipient. The operator reacted by putting the rear cord (response cord) on the jack of the subscriber and changed the headset to the circuit to ask, “Please, number?” The operator placed the pair’s front cable (ring cord) in the local jack of that party and launched the ring cycle for a local call. For a long-distance call, she connected to another operator in a different board bank or a remote central office on a trunk circuit. The average time in 1918 for a long-distance call to complete the connection was 15 minutes.

In the late 1910s and 1920s, advances in switchboarding technology resulted in functions that allowed the call to be automatically answered at once when the operator inserted the response cord and the ringing started automatically when the operator inserted the ring cord into the party’s jacks. The operator is removed from the system, so she may process an extra call, while the caller hears an audible signal ringback so that the operator is not required to report regularly that she still rings the line.

Under the ringdown technique, the initiating operator contacted or transferred an intermediate operator to another intermediate operator to call the subscriber. Only if intermediate trunk lines were available between all centers at the same time would this network of intermediate operators finish the connection. When military calling became a priority in 1943, a U.S. cross-country call in towns that employed manual switchboards for calls may take as long as two hours.

On 10 March 1891 the stepping switch, which led to the automation of the telephone circuit switch, was invented by Almon Brown Strowger, a Kansas City, Missouri operator. Whilst this initial patent has been extended and adapted many times, the one most famous consists of 10 levels or banks with a semicircle of 10 contacts. With a rotating phone dial, the center shaft of the “hand” contact for each step switch was triggered by each pair of numbers to move up a single step (ratchet) for each pulse in the first digit and then to swing horizontally in a contact row with a little rotation for each pulse in the following digit.

Later steps were constructed near the banks, which were a line finder at the initial stage. When the receiver raised one of up to one hundred lines of the subscriber (two hundred lines in subsequent line-finders), the line finder linked the line of the subscriber to the free first selection which returned the subscriber a dial tone showing that he was ready to receive dial numbers. The subscriber dial pulsed at around 10 pulses per second, however, the speed was dependent on the telephone management’s norm.

Other forms of exchanges and later cross-bar technology challenged exchanges based on the Strowger switch. These types of exchanges claimed quicker switching and would take pulses faster than the standard 10 PPS Strowger, generally about 20 PPS. A lot of DTMF “touch tones” or other sound signals were also supported subsequently.

Converter for DTMF to pulsing, feeding into older Stroger, panel, and crossbar switches were used in a transition technology (from pulse to DTMF). This was utilized till mid-2002. This technology.

Terminologies associated with the telephone exchange

The significance and utilization of several words used in telecommunications technology vary throughout the many areas of English. The following definitions shall be established for the purposes of this article:

• Manual service is a telephone service where a phone operator directs calls as ordered by a telephone-set subscriber that does not have a dial.
• Call service is when a call on an exchange route is made using subscriber numbers.
• An exchange switch is a telephone switch.
• A region served by a certain switch or central office is a wire center.
• A concentrator is a traffic-concentrated device, whether remote or with a switch.
• An off-hook state is a circuit used, for example, when a phone call is made.
• A hook state is an idle circuit, i.e. no call is being made.

Initially, a central office was the principal exchange in a city with additional areas of the exchange service. Any switching system with its installations and operators was the phrase used. It is also usually used for construction, which switches the homes and is connected within the plant. The central office is a Class 5 telephone shift in the U.S. telecommunications parlance were trunks and local loops are terminated and switched on. In the United Kingdom, a telephone exchange is an exchange and a calling switch’s name.

Manual service exchanges

The consumer raises the receiver off-hook using manual service and requests the operator to connect the call to the number specified. Where the number is located on the operator’s switchboard in the same central office, the operator connects the call to the jack by connecting the ringing cable to the customer line. If the calling party’s line is on a different panel in the same office or in a separate central office, the operator connects into the trunk for a panel or office and asks the calling provider (“B”).

Most urban exchanges provided a battery-only service, which means that the central office supplied power to the subscriber’s telephone systems for transmitter operation and for automated rotary dial signaling. With common battery systems, 48V (nominal) CD potential from the telephone company ends across the conductors from the subscriber’s telephone to the exchange. If you are hooked or idle, the telephone shows an open circuit.

If your phone is not hooked, it displays a line-wide electrical resistance that causes the electricity to fluctuate via the telephone and cables to the central office. This current went through the relay spool in a manually operated switchboard and triggered a buzzer or light in the switchboard of the operator signifying that the operator was operating.

Every workplace was converted to automatic equipment in the major cities for many years, such as a panel switch. During this transitional time, a number may be dialed in a manual exchange and connected without the help of the operators after numbers were standardized to 2L-4N or 2L-5N (two-letter exchange name and either four or five digits). The Bell System policy specified that in major cities consumers should not have to deal with a sort of bureau, either as a manual or as an automatic office.

When the number of the manual station was called by a subscriber, the destination bureau operator replied after viewing the number on the indicator and linked the call to the outgoing circuit with a cord and ringing to the destination station. For example, in a dial customer from TAylor 4725 who phoned an exchange number, such as ADams 1383-W, from the perspective of the subscriber, a call was completed in an automated interchange precisely like a call to LEnnox 5813. Only manual exchanges with jack-per-line party lines were utilized in the party lines W, R, J, and M.

Contrary to the list format MAin 1234 for an automated office with two main letters, the format in which the second letter was not capitalized may be seen in a manual office that had listings such as Hillside 834 or East23.

In both rural and smallest town regions there was manual service and magnet telephones with a signaling generator crank were used for signage. The subscriber cranked the crank to create a ring currently in order to warn the operator or another subscriber on the same line. The panel reacted by disconnecting the circuit that felled a metal tab above the line jack of the subscriber and sounded like a buzzer. The transmitter had direct power from dry cell batteries, usually two big N°s. 6 cells on the phone of the subscriber. Magnet systems such as Bryant Pond, Woodystock, Maine were in operation in the USA in 1983.

Many small-town magneto systems include party lines that share one line, somewhere between two and 10 or more users. The operator utilized code ringing while contacting a party, a particular ringing signal sequence, such as two long rings followed by a brief ring. All on the connection were able to hear the signals and to record and monitor the conversations of other individuals.

Early automatic exchanges

In 1888, Almon Strowger created automatic exchanges that offered dial service. The latter were initially commercially employed in 1892, but in the first decade of the 20th century, they were not widely used. They removed the need for human operators to complete the telephone connections. The electromechanical systems and telephones replaced by automation human operators had a dial with which the caller sent his destination telephone to the automated switching system. Automation

When an operator removes the handset from the switchhook or cradle, a telephone exchange instantly recognizes a phone’s off-hook state. The exchange offers a dial tone to tell the user that the exchange is prepared to receive called numbers. The telephone pulse or DTMF tones are analyzed and a link to the target phone within a single exchange or a different remote exchange is created.

The exchange keeps the connection until one side stops. Supervision is termed this monitoring of the connection state. Additional characteristics may also be included in this exchange, such as billing equipment.

A function called the automatic number identification (ANI) has been introduced by the Bell system dial service, which enables services such as automated charging, 800-number free of charge, and the 9-1-1 service. The operator understands in manual service where the light on the jack board field is the source of a call. The operator requested the calling party’s name before ANI and recorded it on a paper toll ticket, and made long-distance calls in an operator’s queue.

The early exchanges involved the use of motors and shaft drives, switches, and reliefs for electromechanical systems. The switch or step by step Strowger, all relay, X-Y, panel switch, Rotary system, and the crossbar switch were certain types of automated exchanges.

Electromechanical signaling

Interconnection circuits are termed trunks. trunks. Bell System electromechanical switches formerly communicated with each other across trunks in the United States before Signalling System 7 using a range of DC voltages and signaling tones, superseded now by digital signals.

Certain signals conveyed phoned numbers. The Panel Call Indicator Pulsing employed quaternary pulses to make calls between a panel switch and a manual panel. Perhaps the most frequent way of dialing the digits between the electromechanical switches was the transmission of dial pulses, akin to the pulsation of a rotary dial, but sent over trunk lines between switches.

20 pulse per second between bar switch and crossbar tandems were often used for Bell System trunks. This was double the pace of telephone calls in Western Electric/Bell System. The quicker pulse rate increased the efficiency of the trunk use since the switch lasted half as long to hear digits. For trunk signals, DTMF was not utilized.

The latest pre-digital techniques were multi-frequency (MF). It has been used in pairs like DTMF for another set of tones. A unique key pulse (KP) was added to dialing and a start was followed (ST). Bell System MF tone system variations have become a CCITT standard. The Americas and certain European countries, notably Spain, have adopted similar methods. Digit strings were typically shortened between the switches to enhance future use.

One switch, for example, could only convey the last four or five numbers. In the first example, a digit 1 or 2 was used to distinguish between two area codes or office codes for seven-digit numbers (two-digit-per-call savings). The trunk’s income improved and the number of digit receivers required in a switch was decreased. Every duty was performed in large metal parts using electromechanical switches. Each fractional second call cutting time resulted in fewer racks of telephone transmission equipment.

For example, E and M signals, SF signals, and robbed-bit signaling are communicating monitoring or call progress. Trunks were four wires on physical (not carrier) E and M trunks. A hundred pair of switches, for example, would require fifty trunks. Drivers on a single common circuit were called tip, ring, ear(E), and mouth (M). Tips and rings were the voice carriers on the manual operator’s console and were named after the tip and ring on the three driver cables.

A handshake was applied to bidirectional trunks using E and M signals so that both switches could not collide by calling the same trunk simultaneously. The switches passed a handshake protocol by altering the status of these leads to -48 volts from the ground too. The local switch would transmit a signal to be ready for a call by changing the DC voltage, and the remote switch would answer with a wink to pulse the dial. The logic of the relay and discrete electronics were used.

These variations in voltage would generate pops or clicks that are audible to the labor when the power handshake passes its protocol. A further handshake generated a second set of clunks, when the group called replied, in order to start the billing schedule.

Single-frequency or SF signaling was a second frequent kind of supervisory signaling. A continuous 2 600 Hz tone was used to designate a trunk as idle. The most frequent way. The audience for a trunk circuit of 2.600 Hz would go idle for some time. (Reduced falsification of the time required) Some systems have employed tone frequencies above 3,000 Hz, especially on multiplex microwave radio relays of SSB frequency divisions.

Bits inside the T-1 data stream were utilized to send monitoring for T-carrier digital transmission systems. The right pieces have not changed voice quality much through careful design. The circuits in the channel bank circuitry converted stolen bits into changes in contact states (opening and closing). This enabled the transmission of direct E and M signals, or dial pulses, over a digital carrier that does not have a DC continuity between the electromechanical switches.

Noise

A feature of electromechanical switching equipment is that service personnel may hear Strowgers mechanical scrapping, panel switches or crossbar relays. During heavy-duty times, it can be hard to talk in a central office switch because calls are clattered in a big switch. For instance, the metal rattling might make lifting voices essential on Mother’s Day in the USA or on Friday evening around 5 pm. These sounds looked like hail that fell on a metallic roof for wire spring relay markers.

A Sunday morning before dawn, call processing might be delayed to the point that individual calls can be dialed and configured. Noises from whining power converters and ringing generators were also produced. There were systems that had a rhythmical rhythmic clack-clack from wire relays, which rearrange (120 ipm) and generate busy signals (60 ipm).

Bell System facilities generally have warning bells, gongs, or chimes to alert a broken switch element. To switch common control elements, a problem reporting card system was linked. These issue reporting systems have created a coding that documented the nature of a failure on cardboard cards. Reed relay technology ultimately calmed the atmosphere in the stored program control exchange.

Maintenance tasks

Electromechanical switching systems needed direct current (DC) and alternating ring current (AC) sources of power, which were generated locally via mechanical generators. Additionally, several mechanical parts had to be adjusted using telephone switches. Contrary to the current switch, DC continuity was obtained via metallic conductors inside the local exchange range from a circuit that connects an electromechanical call.

All systems are designed and maintained in a way that prevents abonnés from experiencing excessive changes in service quality or noticing breakdowns. A number of tools called make-busy have, after failure and during refurbishment, been connected to the electromechanical control element. The part being worked on as in-use was detected by makers and the switching logic was turned around. An instrument of this kind was termed a TD tool. Criminal customers were briefly denied their service (TDed). This was achieved by plugging a tool in step-by-step switches in the subscriber bureau equipment on Crossbar systems or line groups. Calls might be received by the subscriber, but cannot dial out.

The step-by-step Strowger-based Bell System offices required constant upkeep, for example cleaning. Lights on equipment bays notified the personnel to situations such as blown fuses or permanent signal white bulbs (stuck off-hook condition, usually green indicators). Step offices were more vulnerable than modern technology to single-point failures.

More shared control circuits were used by the Crossbar offices. For instance, a digital recipient (part of an element named the Originating Register) is linked to a call which is just long enough to gather the number of the subscriber. More versatile than step offices was crossbar architecture. Later crossbar systems had difficulties reporting systems relying on punch cards. By the 1970s, almost all step by step and crossbar switches in the Bell system had been upgraded to automated number identification.

Electronic Telephone Exchange switches

In phases, electromechanical switching systems with stored program control progressed, from electromechanical hybrids to completely digital systems. Early systems have employed digitally controlled, reed-relay, metallic pathways. The data input on a terminal was done by equipment testing, reassignment of call numbers, circuit lockouts, and similar activities.

The Western Electric 1ESS switch, Northern Telecom SP1, Ericsson AXE, AAE, Philips Metaconta, UK GPO/BT TXE series, and a number of other models were comparable examples of such systems. Ericsson has developed its ARE crossbar exchange with a fully computerized version. The crossbar switching matrix was equipped with a completely informational system and a wide range of sophisticated services were supplied. ARE11 was named the local version, whereas ARE13 was known as the tandem version. In the late 1970s and in the 1980s, they were utilized for digital technology in Scandinavia, Australia, Ireland, and a large number of other nations.

These systems might employ antique, transversal, and gradual electro-mechanical signaling techniques. The two 1ESS exchanges were also able to interact with each other through a data link called the Common Channel Interoffice Signaling (CCIS). The CCITT 6, the SS7 predecessor, was used as the connection to this. Signaling was typically utilized for European systems R2.

Digital Telephone Exchange switches

Different laboratories in the USA and Europe created the first notions of digital switching and transmission from the 1930s forward. As part of the ESSAX project, Bell Labs produced the first prototype digital switch while LCT (Laboratoire Central de Telecommunications) in Paris created the first real digital exchange in combination with digital transmission technologies. The Empress Exchange in Londres, developed by the General Post Research Centre, was the first digital switch to be installed into a public network in England. It was a tandem switch connecting three interchanges in Strowger. A completely digital local switching system was the first commercial deployment

Digital switches are prominent examples:

• Ericsson’s AXE telephone exchange is the world’s most commonly utilized digital switching platform in most of the nations in Europe. Mobile apps it is also extremely popular. In Sweden the extremely successful Ericsson Crossbar ARF, ARM, ARK, and ARE switch family was created in the 1970s as a replacement for several European networks. This highly flexible technology was utilized in the 1950s.
• Three of the most iconic digital switching systems in the world were inherited from Alcatel-Lucent: Alcatel E10, 1000-S12, and the Western Electric 5ESS.
• In France throughout the late 1960s and 1970s, Alcatel created the E10 system. One of the first TDM switches to be used widely in public networking, this well-used series of digital switches. First linked subscribers in France to E10A switches in 1972. In France, Ireland, China, and many more nations this method is being implemented. Many changes have taken place and recent versions even have been included in all IP networks.
• In its purchase of the ITT’s European business, Alcatel also acquired ITT Systems 12. In the 1990s, the systems S12 and E10 were combined into one single platform. The S12 system is utilized in many other nations worldwide, including Germany, Italy, Australia, Belgium, China, and India.
• Finally, the Company acquired Lucent’s systems 5ESS and 4ESS in the United States and many other countries when Alcatel and Lucent amalgamated.
• EWSD Networks from Siemens, Bosch, and DeTeWe [de] for the German market was initially created by Nokia Siemens worldwide.
• Nortel, Genband, and Ribbon Communications are then popular with operators all around the world, such as the DMS100 and later variants.
• GTD-5 EAX was created by GTE Automatic Electric and Lucent acquisition of the GTD-5, which was Alcatel-Lucent and Nokia.
• In Japan, New Zealand, and several other nations, NEC NEAX has been utilized.
• In the United Kingdom public telephony network, Marconi System X was originally created by GPT and Plessey as the digital telephone exchange type utilized by BT Group.

In 8,000 times in seconds, Digital switches encode speech in progress. (A speed of 8 kHz sampling). A digital PCM sound display is produced in each piece. In order to create the sound for the receiving telephone, the digital PCM signals are then transmitted to the receiving end where the reverse process is carried out using the DAC (Digital to analog converter). This is to utilize PCM to swap and reconstruct the speaker’s voice to the other end when someone uses the telephone. The voice of the speaker is delayed by a few minutes — it’s not “live,” re-constructed — it’s just delayed.

The distant concentrator is linked with individual local loop telephone lines. The concentrator is often co-located in the same structure as the switch. ETSI has standardized the interface between remote concentrators and telephone switches as the V5 protocol. Concentrators are employed since most phones are inactive most of the day, thus traffic may concentrate hundreds or thousands of them in only tens or hundreds of common connections.

Some phone switches have no directly linked concentrators but are used to connect calls between other phone switches. The “carrier-level” switches or tandem switches refer to these sophisticated devices.

Some telephone exchanges are located in tiny towns, which generally take many kilometers from distant or satellite switches and are housed on a parent switch. Depending on the parent switch, the remote switch will be used. A remote switch may transport calls between local telephones without truncating the parent switch, unlike a digital loop carrier.

The switch’s place in the network

A tiny component of the vast network is telephone switches. The external plant, which is the wiring outside the central office, is a key element of the telephone system’s costs, maintenance, and logistics. In the course of the middle of the 20th century, many customers have been serviced by parties, nevertheless, the objective was to link each telephone station to a pair of cables from the switching system.

A typical central office can contain tens of thousands of pairs of wires which are termed the Main Distribution Frame (MDF). A protective component of the MDF is fuses or other devices protecting the switch from lightning, electric shorts, or other external voltages. A huge database monitors data on each pair of subscribers and the status of each jumper in a traditional phone company. This information was entered in pencil in accounting ledger books before Bell System records were computerized in the 1980s.

Some firms employ ‘pair gain’ devices to supply their users with telephone service to reduce the cost of external plants. This device is used to offer services where current copper facilities are depleted or can shorten copper pair lifespan by installing in the neighborhood, enabling digital services such as the ISDN or the digital subscriber line (DSL).

Pair of digital loop carriers (DLCs), normally in a wide neighborhood away from the CO, are situated outside the central office. After a proprietary device from Lucent, DLCs are frequently referred to as Subscriber Loop Carriers (SLCs).

Universal (UDLC), or integrated DLCs can be set (IDLCs). There are two terminals in universal DLCs, which work like a central office terminal (COT) and a remote terminal (RT). Both terminals interact with analog signals, convert to digital signals, and carry them to the reverse side.

Sometimes different equipment is used for transport. The COT is removed in an integrated DLC. The RT is digitally connected instead to the telephone switch equipment. The overall quantity of equipment required is reduced.

Both local central and long-distance switches are utilized. Switches. In a Public switched telephone network (PSTN) there are two main types of switches: Class 4 telephone switches built for toll or switch-to-switch connections and Category 5 telephone switches and subscriber switches that handle subscriber telephone connections. Since the 1990s it has become popular to have hybrid switching Class 4/5 systems serving both purposes.

Time and time are other components of the telephone network. The 10 MHz standards can be combined into high precision switching, transmission, and billing devices that synchronize time events at extremely near intervals. Rubidium, Caesium, and global positioning system recipient may be included in time standards equipment.

Time and timing are other features of the telephone network. The 10 MHz standards, which synchronize time occurrences in extremely short intervals, are subject to very high precautions. Rubidium or Caesium-based standards and a receiver of the Global Positioning System may contain Time Standards.

Telephone Exchange Switch design

Long-range switches may utilize a slower, more effective switch algorithm than local central offices because the input and output channels are used almost 100 percent. More than 90% of the channel capacity of central offices is idle.

Traditional telephone connections link physical circuits (e.g. wire pairs), whereas a mix of the space and time division is used by contemporary telephone conversions. In other words, on a physical wire pair, each speech channel consists of a time slot (say 1 or 2). (A or B). The telephone switch exchanges information between A1 and B2 to connect two voice channels (say A1 and B2) together. The time slot and physical connection are switched. It transfers data 8,000 times per second between slots and connections, controlled by digital logic that runs through computerized listings of the present connections. A contemporary switch is much smaller with both forms of switching than space- or time switch alone might be.

The structure of a switch is a strange number of sub-switches, smaller and simpler. Each layer is connected to a set of sub-switches via a web of wires which runs from each subswitch. In certain designs, an alternating physical (space) layer is a layer of time. The layers are symmetrical, as callers can be called in a telephone system. Other designs just employ time-switching during the whole changeover.

A time-division subswitch reads a whole cycle of time slots into a memory and then writes them out, also in a cyclic memory, in a different sequence. This causes the signal to be delayed.

An electric route is switched using a space division subswitch, which uses a non-blocking minimum spanning switch or a cross-over switch.

Fault tolerance

Inherent fault tolerance is composite switches. If a subswitch fails, a regular test can allow the controlling computer to feel the failures. The computer identifies all subswitch connections as “in use.” This will block new calls and will not interrupt existing calls. The subswitch is unused and can be fixed once the established calls expire. The switch returns to full functionality after the following test is successful.

All layer connections in the switch are assigned using first-in-first-out lists to minimize annoyance with non-sense failures (queues). In consequence, when a connection is incorrect or loud and the client hangs up and calls, a number of connections and subswitches are given. An allocation of links to the last in the first out (stack) might result in a continued run of highly aggravating failures.

Fire and disaster recovery

Almost often a central exchange is a single failure point for local calls. As the capacity of individual interconnecting switches and the optical fiber rises, the possible destruction of one local office is merely increased. Their capacity is increased. Multiple fiber connections can be used to redundant voice and data connections between switching points, but careful networking is necessary if the primary fiber and its backup are both damaged by the same central office as the possible default mode.
